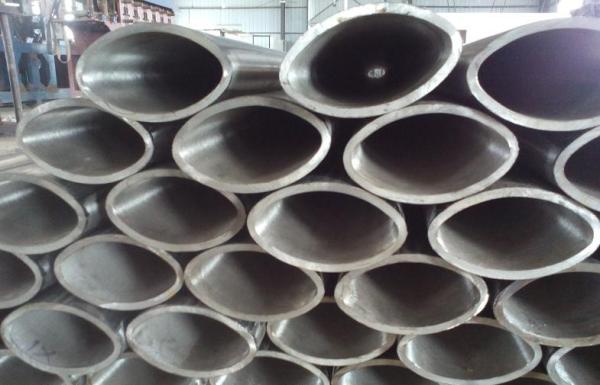

    2B,No.1,Bright Surface Seamless Stainless Steel Oval Tube,201,304,316l etc

    Ask Lasest Price
    Brand Name : Cosco Steel
    Model Number : TP201,TP304,TP316L,TP321etc.
    Certification : ISO,SGS,CQC,etc.
    Price : Negotiation
    Payment Terms : T/T, L/C at sight
    Supply Ability : 600Tons/Month
    Delivery Time : 20-25 days
    • Product Details
    • Company Profile

    2B,No.1,Bright Surface Seamless Stainless Steel Oval Tube,201,304,316l etc


    2B,No.1,Bright Surface Seamless Stainless Steel Oval Tube,201,304,316l etc


    Quick Detail:


    All oval pipe ( seamless and welded ),be made by round steel pipe,the manufacturing process of round steel pipe according to ASTM A312/A312 - 04 Standard Specifiction


    Min outsider diameter

    8mm

    Max outsider diameter

    219mm

    Wall thickness

    0.5mm to 8.0mm

    Surface Finished

    2B, AP finish, No.1 finish.Hairline finish,Bright Surface

    Type

    Elliptical Pipe,Square Tube,Rectangular Tube

    MaterialsGB,SUS,AISI,Euro etc.
    Heat Conductivity0.033

    Description:


    We can supply type of pipe: Seamless Oval Pipe, Welded Steel Pipe; Seamless Square Pipe,Welded Square Pipe; Seamless Elliptical Pipe,Welded Elliptical Pipe;


    Items

    Square pipes, round tubes, oval pipes, special shaped pipes, empaistic pipes, fittings

    Standard

    ASTM A554, A249, A269 and A270

    Material Grade

    201: Ni 0.8%~1%

    202: Ni 3.5%~4.5%

    304: Ni 8%, Cr 18%

    316: Ni 10%, Cr 18%

    316L: Ni10%~14%

    430: Cr16%~18%

    Outer Diameter

    6mm--169mm

    Thickness

    0.3mm - 3.0mm

    Length

    6m or as customers' request


    Tolerance

    a) Outer Diameter: +/- 0.2mm

    b) Thickness: +/- 0.02mm

    c) Length: +/- 5mm

    Surface

    180G, 320G, 400G Satin / Hairline

    400G, 500G, 600G or 800G Mirror finish

    Application

    Sanitary, food industry, Decoration, construction,

    upholstery, industry instrument

    Test

    Squash test, extended test, water pressure test, crystal rot test, heat treatment, NDT


    Chemical Composition of Material

    Material


    Composition

    201

    202

    304

    316

    430

    C

    ≤0.15

    ≤0.15

    ≤0.08

    ≤0.08

    ≤0.12

    Si

    ≤1.00

    ≤1.00

    ≤1.00

    ≤1.00

    ≤1.00

    Mn

    5.5-7.5

    7.5-10

    ≤2.00

    ≤2.00

    ≤1.00

    P

    ≤0.06

    ≤0.06

    ≤0.045

    ≤0.045

    ≤0.040

    S

    ≤0.03

    ≤0.03

    ≤0.030

    ≤0.030

    ≤0.030

    Cr

    16-18

    17-19

    18-20

    16-18

    16-18

    N

    3.5-5.5

    4-6

    8-10.5

    10-14


    Mo




    2.0-3.0



    Mechanical Property

    Material Item

    201

    202

    304

    316

    Tensile Strength

    ≥535

    ≥520

    ≥520

    ≥520

    Yield Strength

    ≥245

    ≥205

    ≥205

    ≥205

    Extension

    ≥30%

    ≥30%

    ≥35%

    ≥35%

    Hardness (HV)

    <253

    <253

    <200

    <200


    1. Marking: Registered logo,Heat Number,Steel Grade,Standard,Size
    2. Packing: Plastic bag in bundle
    3. H.S Code: 7304.4190 ( For seamless Oval | Elliptical | Square | Rectangular Pipe )
    4. Ordering Information: It shall be the responsibility of the purchaser to specify all requirements that are necessary for products under this specification. Such requirements to be
    5. considered included,but are not limited to,the following:

    1). Quantity ( feet, meters, or number of lengths )

    2). Name of material ( seamless tubes )

    3). Size ( Table1 )

    4). Length ( specific or random )

    5). Condition ( hot finished or cold finished )


    TABLE1 Sizes for Elliptical Or Square & Rectangular Tube


    Wall

    Thickness


    Size

    1.5 mm

    2.0 mm

    3.0 mm

    3.5 mm

    4.0 mm

    4.5 mm

    5.0

    mm

    6.0 mm

    8.0 mm

    9.0 mm

    10.0 mm

    12.0 mm

    10x10mm

    10x20mm

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    20x20mm

    20x40mm

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    40x40mm

    40x80mm

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    50x50mm

    50x100mm

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    60x60mm

    60x120mm

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    80x80mm

    80x160mm

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    100x100mm

    100x150mm

    100x200mm

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    150x150mm

    150x200mm

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    200x200mm

    200x250mm

    200x300mm

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    300x300mm

    ×

    ×

    ×

    ×

    ×

    ×

    ×

    ×


    Applications:


    We,this type seamless and welded food steel tube be widely used in kinds of industries:

    1. Petroleum, chemical, construction,
    2. Bridges, textile printing and dyeing, mechanical hardware, medical, decoration,
    3. Shipbuilding and other heavy industries

    Our advantage

    1. 100% Tube Hydro-static Test or Nondestructive Electric Test
    2. Special sizes we can produce
    3. Big stock raw material in warehouse
    4. Tensile Test for each Heat No.’s material
    5. 100% Annealing&Solution and Pickling
