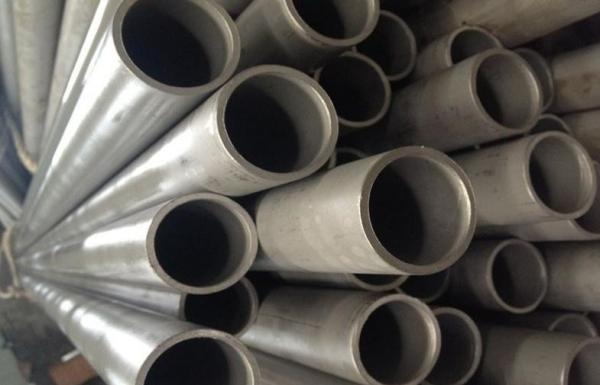

S34709 1.4912 TP347H Stainless Steel Round Tube for Heat Exchanger

    Buy cheap S34709 1.4912 TP347H Stainless Steel Round Tube for Heat Exchanger from wholesalers

    Buy cheap S34709 1.4912 TP347H Stainless Steel Round Tube for Heat Exchanger from wholesalers
    • Buy cheap S34709 1.4912 TP347H Stainless Steel Round Tube for Heat Exchanger from wholesalers

    S34709 1.4912 TP347H Stainless Steel Round Tube for Heat Exchanger

    Ask Lasest Price
    Brand Name : Cosco Steel
    Model Number : 304/304L,316L,309S,310S,321,347,347H etc.
    Certification : ISO,SGS,CQC,etc.
    Price : Negotiation
    Payment Terms : T/T, L/C at sight
    Supply Ability : 600Tons/Month
    Delivery Time : 20-25 days
    • Product Details
    • Company Profile

    S34709 1.4912 TP347H Stainless Steel Round Tube for Heat Exchanger


    S34709 1.4912 TP347H Stainless Steel Round Tube for Heat Exchanger


    Quick Detail:


    Standard Specification

    ASTM A312,A213,A269,A789,A790 etc.

    Material

    304,304L, 309S,310S,316L,317L,321,,347,347H,2205 etc.

    Outer Diameter

    12.7mm to76.2mm

    Wall Thickness

    0.5mm to 6.35mm

    Length

    1000mm to 18000mm

    Type

    Round,Square,Rectangular

    Delivery condition

    Cold Drawn/Cold Rolled


    Description:


    1. Product Item No.: 0010smls-Cosco Steel
    2. Size DN(in): 1/8” to 20” According to ANSI B36.1, B36.19M
    3. Wall Thickness: From Sch5s to XXS
    4. Length of pipe: Single Random, Double Random,20Feet etc.
    5. Marking: Registered logo,Heat Number,Steel Grade,Standard,Size
    6. Packing: Pipe cap both end,plastic bag in bundle
    7. H.S Code: 7304419000

    Specifications


    Designation: A312/A312M-04a

    Standard specifications For Seamless,Welded,And Heavily Cold Worked Austenitic

    Stainless Steel Pipe


    This specification covers

    Seamless,straight-seamless welded,

    and heavily cold worked austenitic stainless steel pipe

    Manufacture Process

    Seamless (SML) Pipe

    Diameter Tolerance

    +/-1%


    Permitted Variations In

    Wall Thickness


    Tolerance,% from Nominal

    NPS Designator Over Under

    1/8 to 21/2 inc., all t/D ratios 20 12.5

    3 to 18 inc., t/D up to 5% incl. 22.5 12.5

    3 to 18 inc., t/D over 5% 15 12.5

    20 and larger,welded,all t/D ratios 17.5 12.5

    20 and larger,seamless,t/D up to 5% incl. 22.5 12.5

    20 and larger,seamless,t/D over 5% 15 12.5


    Where: t = Nominal Wall Thickness

    D = Ordered Outside Diameter

    Inspection item

    1. Size(outside,wall,length);
    2. 2.Surface of Pipe;
    3. Chemical Composition;
    4. Mechanical Testing
    5. Hydro-static Or Nondestructive Electric Test
    6. ICT(Inter-granular Corrosion Test) etc.

    Ordering Information

    • Quantity(feet,meters, or number of lengths)
    • Steel Grade
    • Size(outside diameter,nominal wall thickness,length)
    • Test report requirements etc.
